A cheat sheet for audio cables and plugs wiring. It can save a lot of time, searching for the right diagrams can sometimes take a while!
Jacks

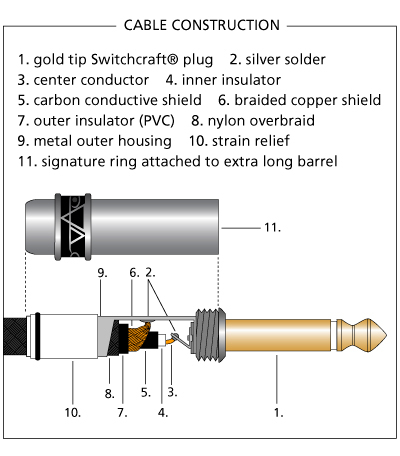

Unbalanced mono 6.35 mm (guitar)

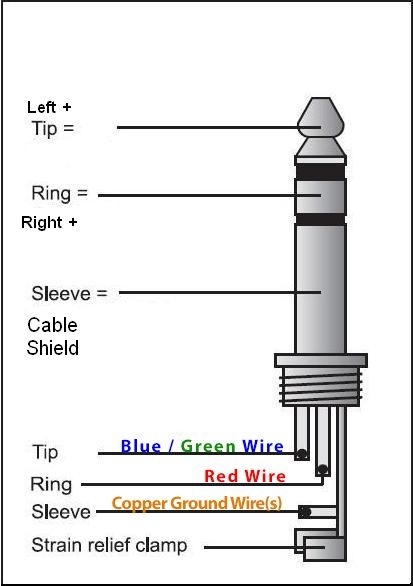

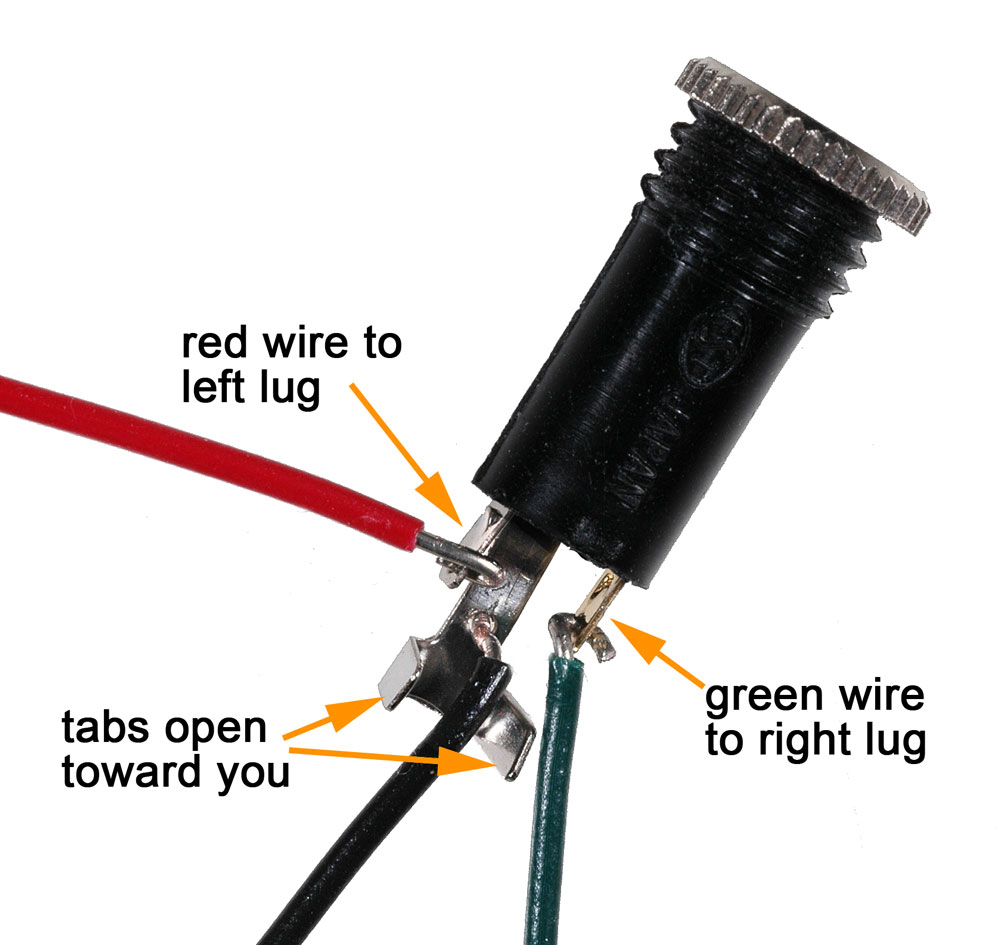

Stereo jacks
XLR
XLR-Jack

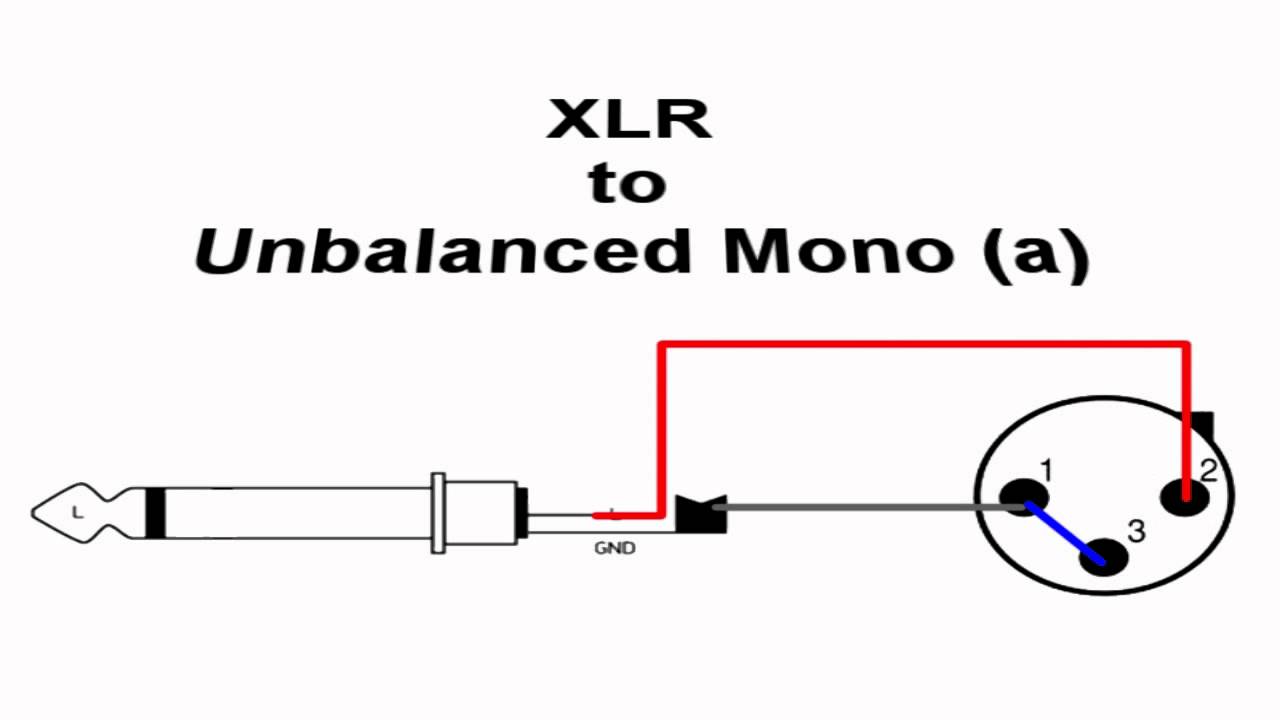

Jack mono to XLR

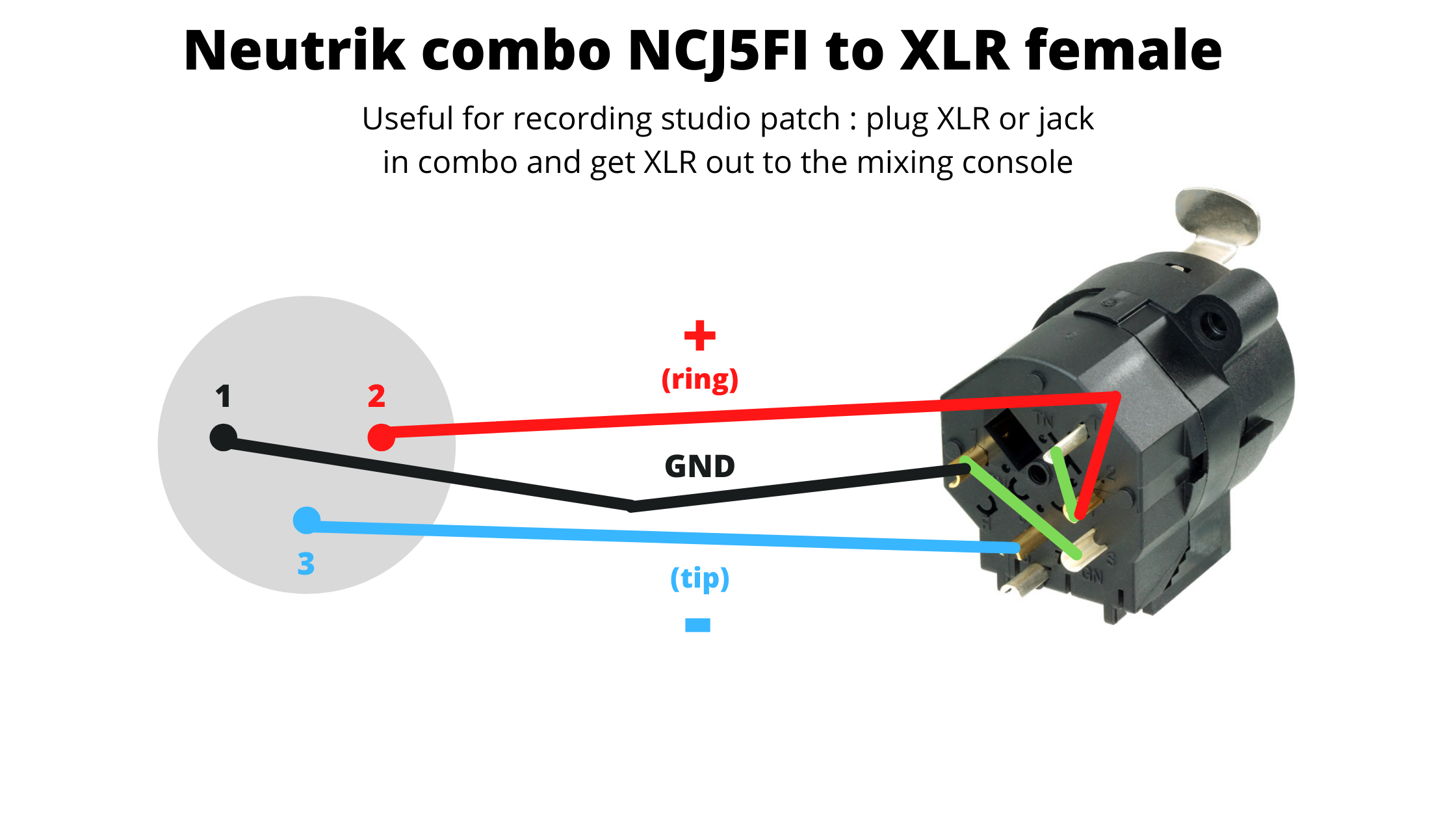

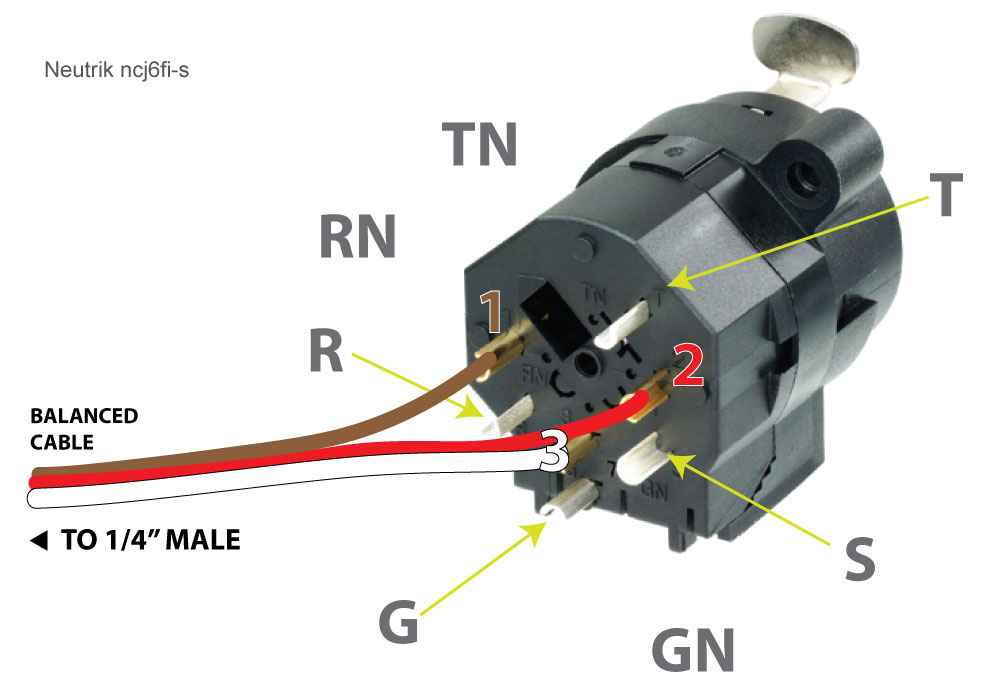

Neutrik combo
Others
